6 mm pure elegance

Illuminated edge

Uplights

Downlights

Three light components

Individually dimmable

Advantages

Light quality
and CRI

The LEDs in the SparkShape luminaire are available in three color temperatures:

2,700K
3,000K
4,000K

The color rendering with a CRI of up to 98 meets your requirements for unique light quality.

Minimalism on 6mm

Minimalism on 6 mm

Minimalism redefined

The body of each SparkShape is made of high-quality acrylic glass, which is framed by two layers of aluminum.

On an area of up to 250 x 125 cm² you design your individually shaped SparkShape luminaire: Your unique luminaire. The body of the luminaire is 6 mm slim and, depending on the viewing angle and shape, has a maximally reduced and uniquely elegant effect.

Tailor-made light atmosphere

Tailor-made light atmosphere

Light distribution and positioning

Each SparkShape offers up to three light components. Filigree downlights with excellent glare control, intensive uplights and the unmistakable light from the illuminated edge that gives your luminaire the perfect finish. For the first time you conjure your lighting atmosphere as individually as the luminaire itself:

With each SparkShape, you define the number and position of each uplight and each downlight freely and according to your ideas. The corresponding illuminance is calculated individually for each luminaire and can be instantly displayed via LightSketch.

Control via Casambi

Control via Casambi

Simple. Intuitive. Wireless.

Thanks to the standard integration of the innovative Casambi lighting control system, you can individually switch, dim and integrate every light component of your SparkShape into scenes and conveniently control it via the app or with numerous compatible controls. The dimming range is between 0 - 100%.

Casambi is a Bluetooth-based lighting control system. It can be operated intuitively via mobile devices with the Casambi app (free for iOS and Android). Through the app, functions such as dimming, grouping of lights and programming of groups and scenes are easily possible.

Learn more about Casambi

Outstanding color rendering

Color, color rendering and performance

Made for your lighting mood

You can choose the SparkShape LEDs from three color temperatures: 2,700K, 3,000K and 4,000K. The outstanding color rendering with a CRI up to 98 meets your expectations for a one-of-a-kind quality of light.

Uplights
Indirect component of a single uplight (upper half space)

CCT

Power

Luminous flux

CRI

2700 K

9,0 W

642 lm

97,0

3000 K

9,0 W

680 lm

96,0

4000 K

9,0 W

795 lm

95,0

Downlights
Direct component of a single downlight (lower half-space)

CCT

Power

Luminous flux

CRI

2700 K

2,1 W

152 lm

97,9

3000 K

2,1 W

168 lm

98,1

4000 K

2,1 W

185 lm

95,0

Illuminated edge

CCT

Power

Luminous flux

CRI

2700 K

4,1 W/m

110 lm/m

93,0

3000 K

4,1 W/m

120 lm/m

93,0

4000 K

4,1 W/m

135 lm/m

93,0

Absolutely flicker free

Flicker free dimming

No compromises

The light sources of a SparkShelf can be smoothly dimmed from 0-100% with zero flicker.

With over a decade of experience, the Ambright team has been engineering drivers and luminaires for medical devices. In magnetic resonance imaging (MRI), even the slightest flicker can disrupt the measurement of atomic nuclei spin in a highly magnetic alternating field. This expertise ensures our products deliver unparalleled performance and reliability. We know exactly what we're doing.

Flicker at 50% dimmed brightness

PstLM / short-term Light Modulation

0,0219

SVM / Stroboscopic Effect Visibility Measure

0,0009

Background

The threshold for PstLM has been set by IEC/EN 61000-3-3 as of September 1, 2021 at ≤ 1.0, and the SVM ≤ 0.4. These values represent the visibility thresholds of test subjects focusing on the evaluation of the stroboscopic effect under laboratory conditions. With the new Ecodesign Directive, the two flicker parameters for assessing short-term perceptibility may thus not exceed a PstLM value of 1.0 and the stroboscopic effect parameter may not exceed an SVM value of 0.4.

Mounting variety

Mounting variety

When your space dictates the shape.

SparkShapes adapt to the room: underneath or next to each other, on the ceiling or on the wall. The variety of mounting options allows (almost) all variants. Horizontal or vertical? How would you like it?

If your SparkShape is mounted on a suspended ceiling, we make the luminaire power supply disappear. Positioned externally, the result is a maximally minimalist appearance. Alternatively, we offer two canopy shapes and sizes for mounting on a bare ceiling with a predefined power outlet. You can even freely choose the position of the connection point, taking into account your structural conditions.

In all mounting variants, the power supply is provided without visible supply lines.

Surfaces as diverse as your ideas.

Colors & surfaces

Matt finishes

mat black

mat black
A1001

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

dark ash

dark ash
A1009

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

grey

grey
A1014

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

cream grey

cream grey
A1002

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

light grey

light grey
A1018

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

megève white

megève white
A1007

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

royal blue

royal blue
A1011

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

light blue

light blue
A1016

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

pale blue

pale blue
A1013

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

light taupe

light taupe
A1015

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

peach light

peach light
A1005

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

coral

coral
A1012

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

blues

blues
A1010

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

clean mint

clean mint
A1004

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

light cream

light cream
A1008

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

steel blue

steel blue
A1003

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

bleu céleste

bleu céleste
A1017

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

bright yellow

bright yellow
A1006

Matt surface

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

Anodized aluminum

brushed gold

brushed gold
A3008

Aluminium anodized

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

brushed copper

brushed copper
A3007

Aluminium anodized

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

natural silver

natural silver
A3016

Aluminium anodized

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

champagne

champagne
A3012

Aluminum anodized
velvet touch

The finest addition to our variety of surfaces expands the anodized range with a matte, velvety feel that simultaneously reduces fingerprints and exudes a special sense of value.

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

gentle dark

gentle dark
A3013

Aluminium anodized
velvet touch

The finest addition to our variety of surfaces expands the anodized range with a matte, velvety feel that simultaneously reduces fingerprints and exudes a special sense of value.

SparkShapes are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

Product details

Easy mounting

Easy mounting

Solutions for all types of ceilings

As individual as your SparkShape, as simple is its installation. Together with your new luminaire, you will receive an individual drilling template for alignment on the ceiling. This corresponds to the shape of your luminaire and marks the exact positions of the suspensions.

If you have a concrete ceiling or no access to a suspended or clad ceiling, we recommend the use of one of our matching canopies. Depending on the shape and size of your luminaire, various types are available and may be supplemented by additional suspensions.

Learn more about the available mounting options

Freely plannable power supply

Freely plannable power supply

Variable placement

The power supply can be mounted inconspicuously so that the weightless design of the luminaire is maintained. For suspended ceilings, we can invisibly power your SparkShape. All that is needed is the specially designed ceiling fixture, as well as a luminaire power supply unit, which, together with the current-carrying suspensions, allows the luminaire to be powered invisibly.

Alternatively, we offer two canopy shapes and sizes for mounting to a bare ceiling. If the power outlet on your ceiling is already defined, you can freely position the corresponding location on the SparkShape according to your circumstances. ​

Learn more about the available mounting options

Technical data

Technical data

Data sheet

Each data sheet is generated individually for your luminaire and takes into account all individually planned parameters of your SparkShape such as shape, size, luminous flux, light distribution, power and more.

You can access the data sheet of your SparkShape via LightSketch. You can access your own designs or create a new luminaire.

LightSketch

Short delivery time

Short delivery time

Minimum quantity: 1
Maximum quantity: Unlimited

Once you have finalized your design in LightSketch, you will receive a checked drawing for final approval. After your order, we start our production in Munich. About four weeks after your order you will receive your SparkShape.

Industry 4.0 from quantity 1 for your unique light.

Customized packaging

Customized packaging

Well thought out down to the last detail

As individual as your luminaire is also the packaging, which we tailor for safe shipping. Part of the packaging, for which we use environmentally friendly and recycled materials, is the respective drilling template.

Quality

What you can count on.

Made in Germany

Each luminaire, crafted with our unique printed-light technology by highly skilled professionals, is custom-made and one-of-a-kind, ensuring top-quality - proudly made in Munich, Bavaria.

Quality promise

Reproducible process conditions, production data recording, and full traceability ensure the highest quality standards in the manufacturing of our SparkShape luminaires through continuous quality control.

Certification

The ENEC marking confirms certified compliance of the product with the applicable European requirements, as well as regularly audited production control and quality assurance.

Logos Zertifikate

Variations

Lightcontour

Lightedge

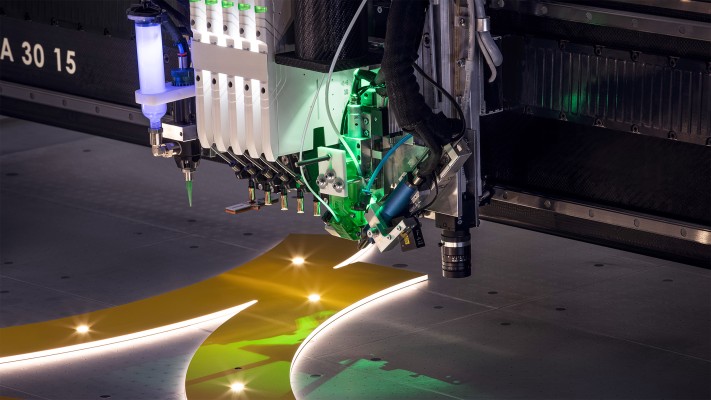

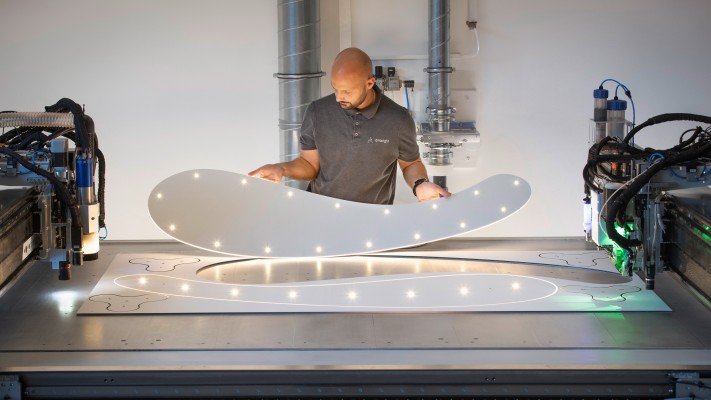

printed-light

printed light

From Gutenberg's movable type to modern mastery: Unveiling the era of printed-light

Embrace the innovative technology of printed-light, a powerful tool that revolutionizes your ability to craft with illumination. We champion the creation of individual, bespoke products, empowering you to take control of the design process. Tailor every aspect – from shape to luminosity, to the overall impact – ensuring your vision comes to life exactly as you imagine. This isn't just lighting; it's a statement of your style, a reflection of your creativity. Make it uniquely yours.

This is where the traditional concept of lighting evolves into a digital, scalable art form. With SparkShapes, you're not just choosing a light fixture; you're embracing a radically new understanding of light. Prepare to be fascinated, as each light installation becomes a unique digital masterpiece, crafted to your specifications and desires. Welcome to the future of lighting. Welcome to SparkShapes made with passion and high-tech.

Platform technology printed-light

Lightsketch

LightSketch: Your digital design platform

Easily design your individual luminaire online. Draw your shape directly or import geometries that you design with light sources or get inspired by the designs in our library.

Learn more about LightSketch
