6 mm pure elegance.

Individually tailored to your application.

Advantages & properties

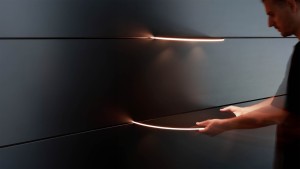

Invisible Design.

If needed, the SparkShelf system seamlessly integrates with all elements from our partner Visplay, thanks to its Invisible 6 foundation.

The sleek, horizontal aluminum profile of Invisible 6 ensures that your products take center stage.

Learn more about Invisible 6

This innovative system allows for customized wall structuring and design, creating a clean and modern display that highlights your exhibits beautifully.

Benefits & Features

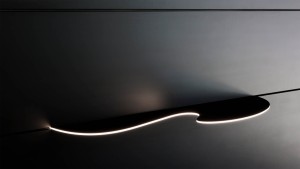

Minimalism on 6 mm

Minimalism on 6 mm

Minimalism redefined

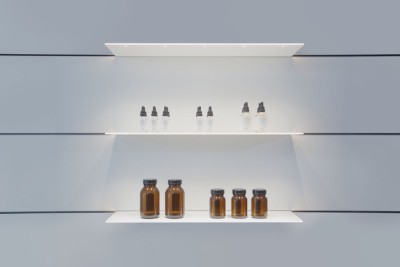

A SparkShelf is made of high-quality acrylic glass, which is framed by two layers of aluminum.

On an area of up to 1200 x 420 mm² you design your individually shaped SparkShelf: Your unique shelf board. The 6 mm narrow body has a reduced and elegant appearance, depending on the viewing angle and unique shape.

Tailor-made light atmosphere

Tailor-made light atmosphere

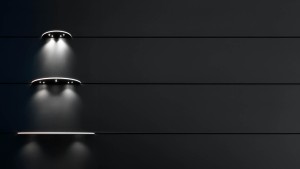

Light distribution and positioning

Each SparkShape offers up to three light components. Filigree downlights with excellent glare control, intensive uplights and the unmistakable light from the illuminated edge that gives your luminaire the perfect finish. For the first time you conjure your lighting atmosphere as individually as the luminaire itself:

With each SparkShape, you define the number and position of each uplight and each downlight freely and according to your ideas. The corresponding illuminance is calculated individually for each luminaire and can be instantly displayed via LightSketch.

Outstanding color rendering

Color, color rendering and performance

Made for your lighting mood

You can choose the SparkShape LEDs from three color temperatures: 2,700K, 3,000K and 4,000K. The outstanding color rendering with a CRI up to 98 meets your expectations for a one-of-a-kind quality of light.

Uplights
Indirect component of a single uplight (upper half space)

CCT

Power

Luminous flux

CRI

2700 K

9,0 W

642 lm

97,0

3000 K

9,0 W

680 lm

96,0

4000 K

9,0 W

795 lm

95,0

Downlights
Direct component of a single downlight (lower half-space)

CCT

Power

Luminous flux

CRI

2700 K

2,1 W

152 lm

97,9

3000 K

2,1 W

168 lm

98,1

4000 K

2,1 W

185 lm

95,0

Illuminated edge

CCT

Power

Luminous flux

CRI

2700 K

4,1 W/m

110 lm/m

93,0

3000 K

4,1 W/m

120 lm/m

93,0

4000 K

4,1 W/m

135 lm/m

93,0

Absolutely flicker free

Flicker free dimming

No compromises

The light sources of a SparkShelf can be smoothly dimmed from 0-100% with zero flicker.

With over a decade of experience, the Ambright team has been engineering drivers and luminaires for medical devices. In magnetic resonance imaging (MRI), even the slightest flicker can disrupt the measurement of atomic nuclei spin in a highly magnetic alternating field. This expertise ensures our products deliver unparalleled performance and reliability. We know exactly what we're doing.

Flicker at 50% dimmed brightness

PstLM / short-term Light Modulation

0,0219

SVM / Stroboscopic Effect Visibility Measure

0,0009

Background

The threshold for PstLM has been set by IEC/EN 61000-3-3 as of September 1, 2021 at ≤ 1.0, and the SVM ≤ 0.4. These values represent the visibility thresholds of test subjects focusing on the evaluation of the stroboscopic effect under laboratory conditions. With the new Ecodesign Directive, the two flicker parameters for assessing short-term perceptibility may thus not exceed a PstLM value of 1.0 and the stroboscopic effect parameter may not exceed an SVM value of 0.4.

Control via Casambi

Control via Casambi

Simple. Intuitive. Wireless.

Thanks to the standard integration of the innovative Casambi lighting control system, you can individually switch, dim and integrate every light component of your SparkShape into scenes and conveniently control it via the app or with numerous compatible controls. The dimming range is between 0 - 100%.

Casambi is a Bluetooth-based lighting control system. It can be operated intuitively via mobile devices with the Casambi app (free for iOS and Android). Through the app, functions such as dimming, grouping of lights and programming of groups and scenes are easily possible.

Learn more about Casambi

Surfaces as diverse as your ideas.

Colors & surfaces

Matt surfaces

mat black

mat black
A1001

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

dark ash

dark ash
A1009

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

grey

grey
A1014

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

cream grey

cream grey
A1002

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

light grey

light grey
A1018

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

megève white

megève white
A1007

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

royal blue

royal blue
A1011

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

light blue

light blue
A1016

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

pale blue

pale blue
A1013

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

light taupe

light taupe
A1015

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

peach light

peach light
A1005

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

coral

coral
A1012

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

blues

blues
A1010

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

clean mint

clean mint
A1004

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

light cream

light cream
A1008

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

steel blue

steel blue
A1003

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

bleu celeste

bleu céleste
A1017

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

bright yellow

bright yellow
A1006

Matt surface

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

Anodized aluminum

brushed gold

brushed gold
A3008

Aluminium anodized

The finest addition to our variety of surfaces expands the anodized range with a special feel that simultaneously reduces fingerprints and exudes a special sense of value.

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

brushed copper

brushed copper
A3007

Aluminium anodized

The finest addition to our variety of surfaces expands the anodized range with a special feel that simultaneously reduces fingerprints and exudes a special sense of value.

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

natural silver

natural silver
A3016

Aluminium anodized

The finest addition to our variety of surfaces expands the anodized range with a special feel that simultaneously reduces fingerprints and exudes a special sense of value.

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

champagne

champagne
A3012

Aluminum anodized
velvet touch

The finest addition to our variety of surfaces expands the anodized range with a special feel that simultaneously reduces fingerprints and exudes a special sense of value.

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

gentle dark

gentle dark
A3013

Aluminium anodized
velvet touch

The finest addition to our variety of surfaces expands the anodized range with a special feel that simultaneously reduces fingerprints and exudes a special sense of value.

SparkShelf elements are manufactured with different surface materials and colors according to customer requirements. Here we present the surfaces available as standard. We will be happy to provide you with color samples with the available surfaces on request.

Highest quality is guaranteed in any case - the materials and surfaces used are CE, IMO and REACH certified, among others.

Here you can reach our sample service

Quality

What you can count on.

Made in Germany

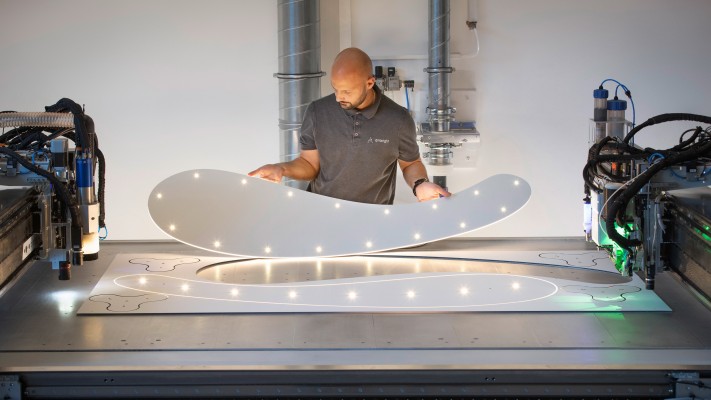

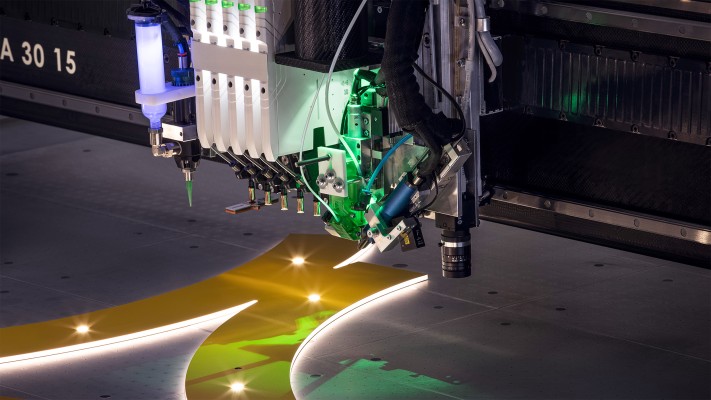

Each illuminated shelf, crafted with our unique printed-light technology by highly skilled professionals, is custom-made and one-of-a-kind, ensuring top-quality - proudly made in Munich, Bavaria.

Quality promise

Reproducible process conditions, operating data acquisition, and full traceability ensure continuous quality control and reflect our highest commitment to quality, a standard that makes SparkShelf a reliable choice for sophisticated spaces and bespoke interior concepts.

Certification

The ENEC marking confirms certified compliance of the product with the applicable European requirements, as well as regularly audited production control and quality assurance.
