Assembly instructions MasterSeries № 01 PARIS

Casambi quick guide

Setting up and operating a SparkShape via the Casambi mobile app is incredibly easy. We'll show you the quickest way to do it here.

Download

Data sheets

Each data sheet is generated individually for your luminaire and takes into account all the individually planned parameters of your SparkShape, such as shape, size, luminous flux, light distribution, power, and many more. You can access the data sheets for your SparkShapes via LightSketch.

LightSketch

Ceiling mounting

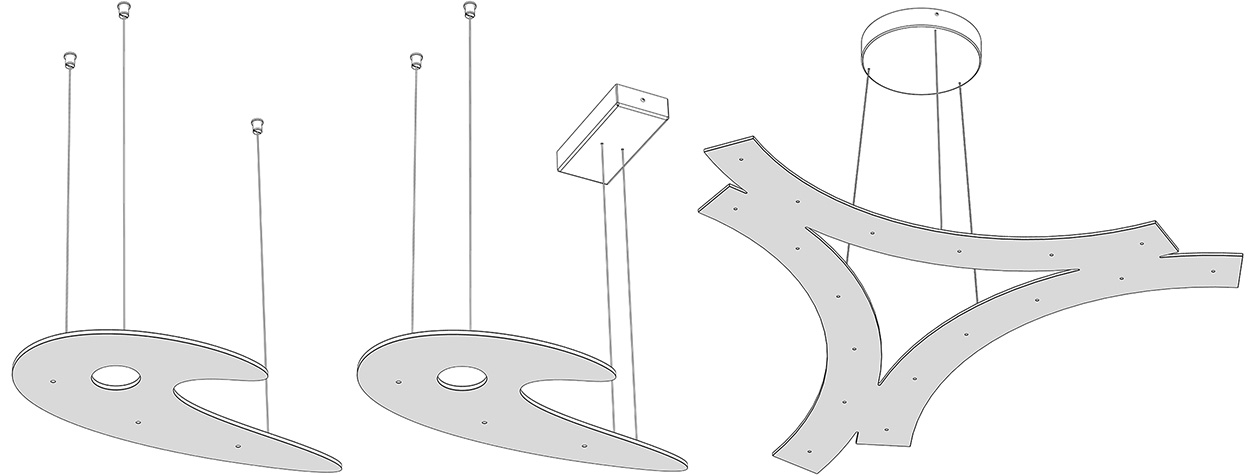

Ceiling mounting and power supply

The power supply can be installed discreetly so that the weightless design of the luminaire is retained. For suspended ceilings, we can supply your SparkShape with power invisibly. All that is required is the specially developed ceiling mounting and a luminaire power supply unit, which, together with the live suspensions, enables the luminaire to be supplied with power invisibly.

Alternatively, we offer two canopy shapes and sizes for mounting on a raw ceiling. If the power outlet on your ceiling is already defined, you can position the corresponding location on the SparkShape freely according to your requirements.

Square

Canopy

Size M

Canopy for ceiling mounting

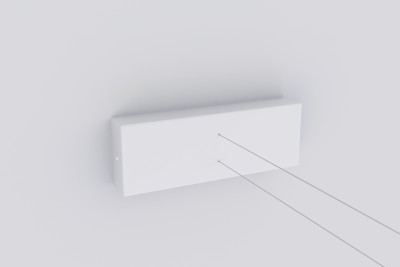

Square design for 65W power supply unit
External dimensions 180 x 82 x 35 mm³
Powder coating in matt traffic white RAL 9016
Two current-carrying suspension points, designed for mounting the power supply unit

Technical drawing

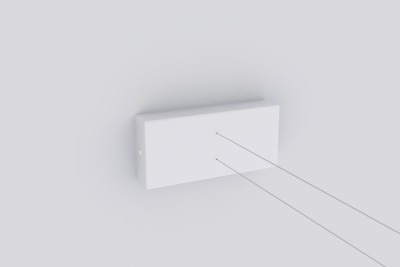

Size L

Canopy for ceiling mounting

Square design for 150W power supply unit
External dimensions 235 x 82 x 40 mm³
Powder coating in matt traffic white RAL 9016
Two current-carrying suspension points, designed for mounting the power supply unit

Technical drawing

Round

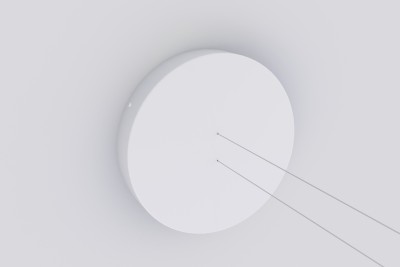

Two suspension points

Canopy for ceiling mounting

Round design for 65W or 150W power supply unit
Diameter 220 mm, height 40 m
Powder coating in matt traffic white RAL 9016
Two current-carrying suspension points, designed for mounting the power supply unit

Technical drawing of two-point suspension

Three suspension points

Canopy for ceiling mounting

Round design for 65W or 150W power supply unit
Diameter 220 mm, height 40 mm
Powder coating in matt traffic white RAL 9016
Three current-carrying suspension points, designed for mounting the power supply unit

Technical drawing of three-point suspension

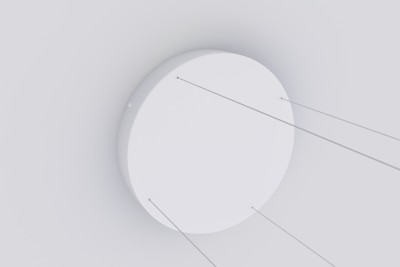

Four suspension points

Canopy for ceiling mounting

Round design for 65W or 150W power supply unit
Diameter 220 mm, height 40 mm
Powder coating in matt traffic white RAL 9016
Four current-carrying suspension points, designed for mounting the power supply unit

Technical drawing of four-point suspension

MasterSeries N°01 PARIS

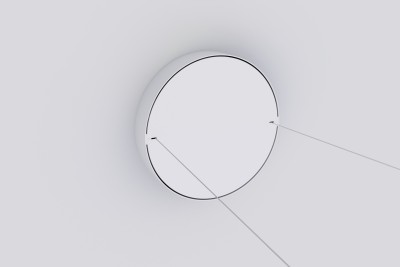

Canopy for ceiling mounting

Round design for 100-240VAC power supply unit
External dimensions ⌀176 x 36 mm
Powder coating in matt traffic white RAL 9016
Two live suspension points, designed for mounting the power supply unit

Technical drawing

Light fixture

Two-piece cover for concealed cavity mounting

Round design for loose mounting of 65W or 150W power supply in concealed cavity
Cover diameter 123 mm, height 3.5 mm
White plastic cover with magnetic attachment
Two, three, or four current-carrying suspension points, designed for mounting the power supply

Technical drawing

Two-piece cover for concealed cavity mounting with vertical power supply attachment

Round design for 150W power supply unit
Cover diameter 123 mm, height 3.5 mm
White plastic cover with magnetic fastening
Two, three, or four live suspension points, designed for mounting the power supply unit

Technical drawing

Fire resistance rating

Building material classification

Safety first: SparkShapes are certified as a building material and can therefore also be used over large areas in buildings.

The general building inspection test certificate classifies SparkShapes as a normally flammable building material of class E according to EN DIN 13501-1.

General building inspection test certificate

When freely suspended, does not burn or drip (comparable to B2 according to DIN 4102-1)

Classification report
